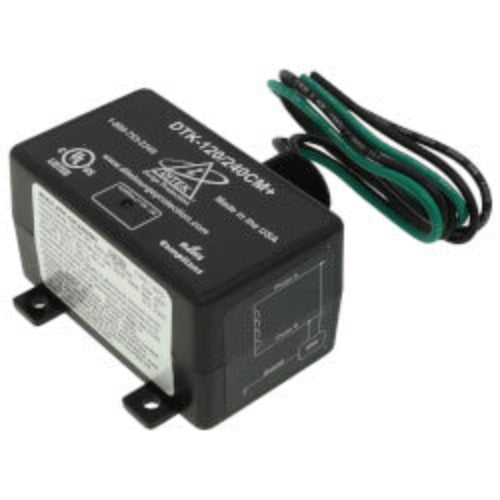

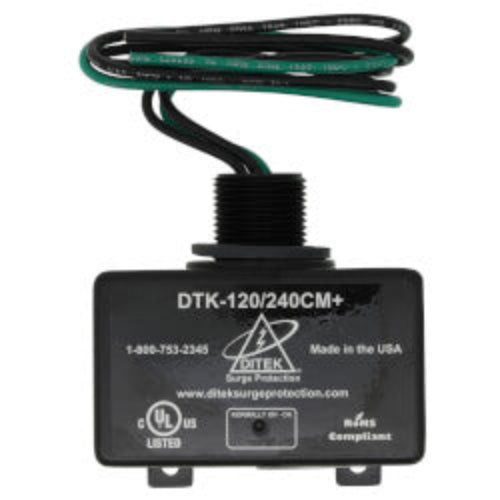

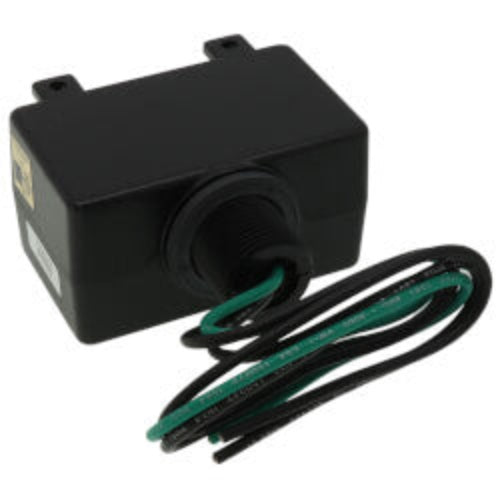

DITEK's DTK-120/240CM+ is a multi-purpose surge protective device ideal for protecting HVAC condensers, pool or well pumps, motors and incoming utility power.
Product Features:
- 50,000 Amp Total Surge Current Rating
- Diagnostic LED provides indication of power, ground presence and SPD function
- NEMA 4X weatherproof enclosure
- UL1449 Listed SPD Type 1
- 3 Year $7,500 Residential Connected Equipment Warranty
Product Specifications:
- Nominal Discharge Current Rating (In): 10kA
- Operating Frequency: 50/60Hz
- Connection Method: 3/4" NPT Male; 18-inch 12 AWG Leads
- Housing: NEMA 4X Polycarbonate
- Operating Temperature: -31°F - 176°F
- Maximum Humidity: 95% non-condensing
- Dimensions: 3.5" L x 1.89" W x 3.4" H
- Weight: 0.55 lbs.
