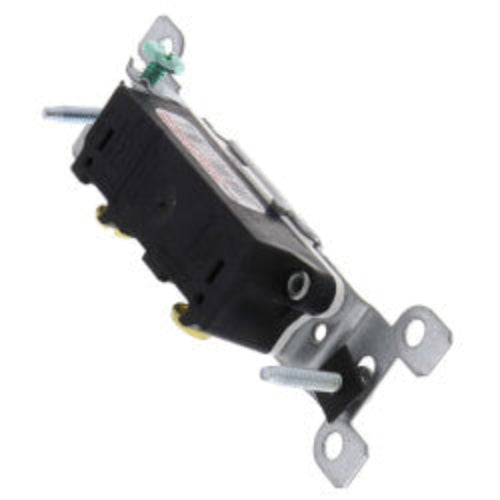

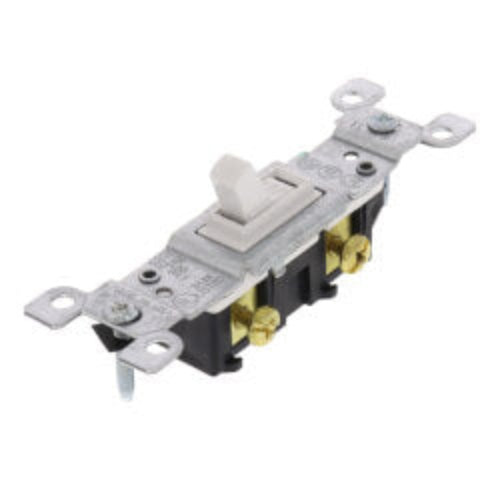

The Leviton 1451-2 makes installation quick and simple with its versatile design. This switch features side mount wiring as well as Leviton's Quickwire push-in wiring on the rear (for use with copper wiring). With the ease of the Quickwire you need to do nothing more than push the wire into the rear of the switch and a spring action will automatically clamp the wire and ensure a good electrical connection. The Leviton 1451-2 also includes an available grounding screw. The impact resistant thermoplastic body is built strong to endure years of use as well as being resistant to a wide temperature range.
Wallplate not included.
Features:
- Quick and Easy Installation
- Simplified Quickwire System
- Side and Rear Wiring
- Grounding Screw Attached
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Durable Impact-Resistant Thermoplastic Switch and Frame
- 2 Year Warranty Through the Manufacturer
Specifications:
- Type: Single-Pole, Standard Size
- Color: White
- Ground: Grounding
- Feature: Framed
- Amperage: 15 Amp
- Voltage: 120 Volt
- HP Rating: 1/2HP-120V
- Max Amp: 12 Amp
- Termination: Quickwire Push-In & Side
- Dimensions: 3.28"H (4.2" with break off ears) x 1.31"W
- Actuator Material: Thermoplastic
- Body Material: Thermoplastic
- Strap Material: Steel
- Certifications: UL/CSA
