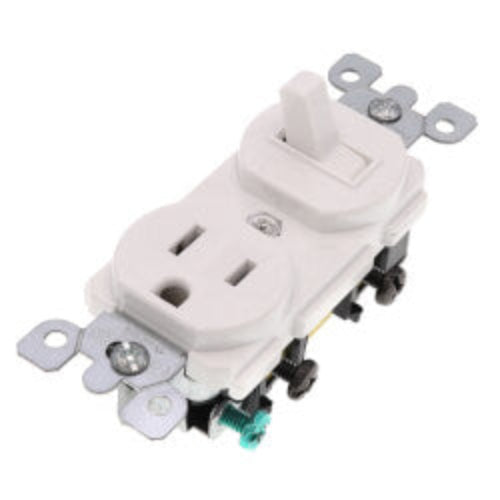

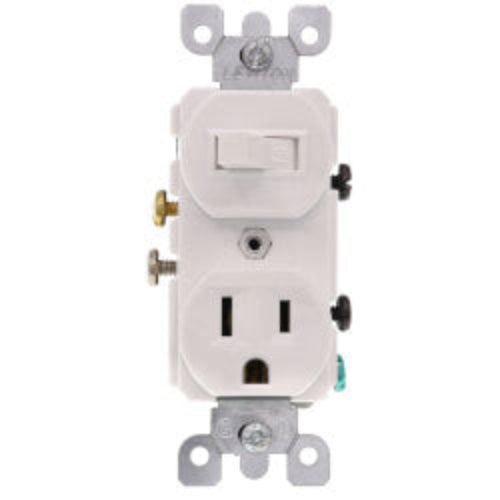

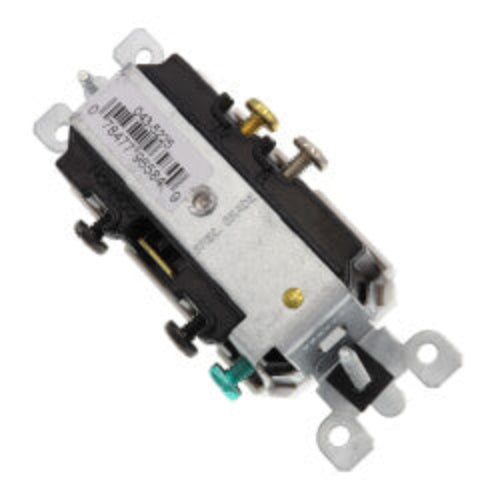

15 Amp, 120 Volt, Duplex Style Single-Pole / 5-15R AC Combination Switch, Commercial Grade, Grounding, Side Wired, - White
The Leviton 5225-W is a duplex style single-pole combination switch in white color. With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Features:
- Fits standard wallboxes
- AC quiet switches have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity
- All devices have grounding screw
- Side wired with terminal screws that accept up to #12 copper or copper-clad wire
- Break-off tabs on devices with AC quiet switches permit conversion to seperate feeds
- Backed by a Limited Two-Year Warranty
Specifications:
- HP Rating: 1/2HP-120V
- Max. Amperage: 12 Amp
- Grounding: Grounding
- Receptacle Amperage: 15 Amp
- Receptacle Voltage: 125V AC
- Switch Amperage: 15 Amp
- Switch Voltage: 120V AC
- Dielectric Voltage: Withstands 1500V for 1 minute
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Temperature Rise: Maximum 30 degrees C rise
- Flammability: Rated V-2 per UL94
- Operating Temperature: -40ºC to 65ºC
- Actuator Material: Thermoplastic
- Body Material: Thermoplastic
- Strap Material: Steel
- Color: White
- Termination: Side
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Terminal Accom.: 14-12 AWG
- Product ID: Stamped on Strap
- Torque Range: 12-14 inch pounds
- Color: White
