Remote Planer Readout

About This Product

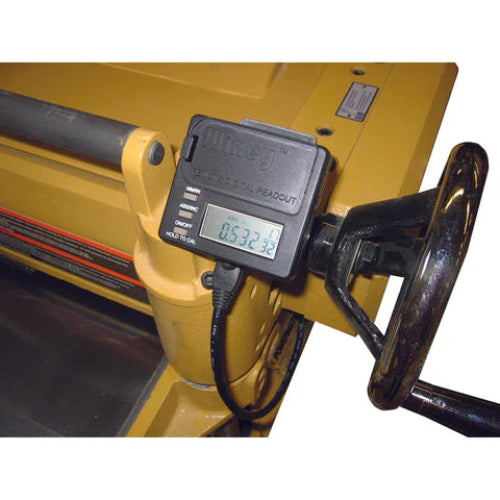

Replace the inaccurate stock height gauge on your stationary planer or thickness sander and stop constantly using calipers to check stock thickness! With the Wixey® WR550 Remote Planer Digital Readout simply lower your planer cutter head until the display reads the desired thickness. Unique gauge reads out either decimal and fractional inch measurements or millimeters up to 12" thickness. Ideal for large stationary planers and sanders, this model is so flexible and versatile that with a little creativity it can be adapted to almost any machine. The kit includes all mounting hardware, drill bits, thread forming screws and easy-to-follow instructions for installation and calibration.

Features:

Fits most stationary planers and thickness sanders
Precise measurements; replaces inaccurate stock height gauge
Displays decimal and fractional inch measurements or millimeters
Easy-to-follow instructions for installation and calibration
Uses common AAA batteries
Specifications:
Model Number: Wixey WR550
Measuring Length: 12" (305mm )
Resolution - Decimal: .005"
Resolution - Fraction: 1/32"
Resolution - Metric: .1 mm
Accuracy - Decimal: +/- .002"
Accuracy - Fraction = +/- 1/500 in.
Accuracy - Metric = +/- .05 mm
Battery Type: (2) AAA (not included)
What's Included:
(1) WR550 Remote Planer Readout
(1) Set mounting hardware
(2) Drill bits - 5.5 and 3.6 mm,
(1) Set of thread forming screws
(1) Easy-to-follow installation and calibration instructions
