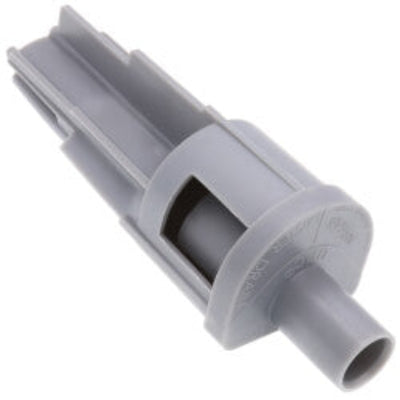

The AG100-001 Universal Air Gap is designed to provide an effective way of connecting water softeners and water filters to 1-1/2" and 2" drain lines.
The AG100-001 features a single inlet port that connects 1/2" piping or 5/8" tubing from water softener or filter to drain line. The unique feature of this air gap is being able to accommodate 1-1/2” and 2” standpipe drains with ease. In addition, a special design of this air gap enables installation of multiple air gaps into the same drain connection. Up to 3 AG100-001s can be installed into the same drainpipe to provide total of six simultaneous water discharge connections.
The AG100-001 uses a special plastic material that minimizes mold growth and provides a strong connection between piping, tubing and drain line.
The AG100-001 air gap drain adapter is listed by UPC® and tested for compliance with IPC® and NSF® standards.
Features
- 1/2" OD inlet port for 1/2" PVC
- 5/8-inch ID inlet port for polyethylene tubing
- Installs in both 1-1/2" and 2" standpipes
- Standpipes can accommodate up to 3 units at a time
- Legal to install in any state, UPC Listed, IPC and NSF tested
