The F100F Media Air Cleaner captures a significant amount of the airborne particles from the air circulated through the unit. It is recommended as the basic minimum air quality product.

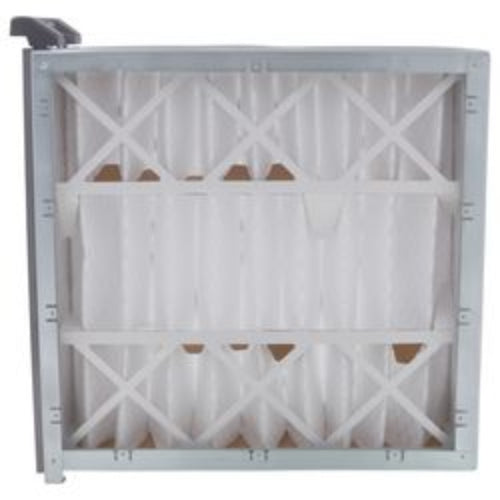

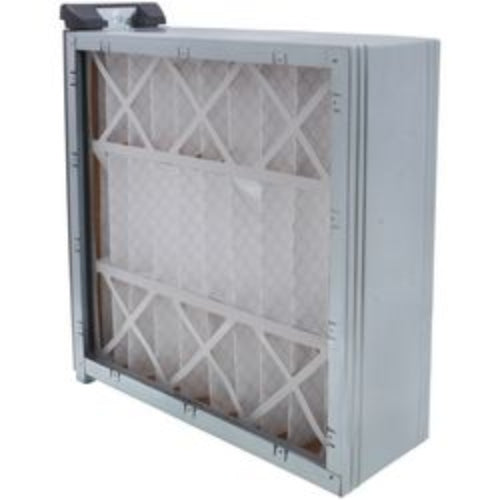

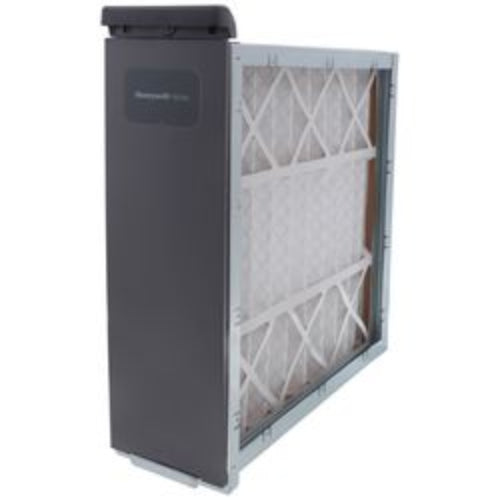

The F100F Media Air Cleaner includes cabinet, access door and FC100A pleated media filter
Product Features:
High efficiency media filter captures particles as small as 0.3 microns
Applicable to all gas, oil and electric forced air furnaces and to compressor cooling up to 5 tons
Mounts in the return air duct
Rugged zinc-coated, roll-formed cabinet resists corrosion and can support weight of residential furnace and evaporator coil
Requires no electrical connections
Mounts in any position
Requires no maintenance except periodic media filter replacement
Quick and easy media filter replacement
Later upgrade to higher performing media or electronic air cleaner is easy
Product Specifications:
Description: Entry level Media air cleaner, 4 inch extended Media
Application: Duct mounted
Dimensions (in.): 20 in. x 20 in.
Dimensions (mm): 508 mm x 508 mm
Airflow Max.-Capacity (cfm): 1400 cfm
Airflow Max.-Capacity (m3/hr): 2380 m3/hr
Efficiency Standard: Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2-1999
Efficiency Standard: Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and large particles, E3=3.0 to 10.0 microns
