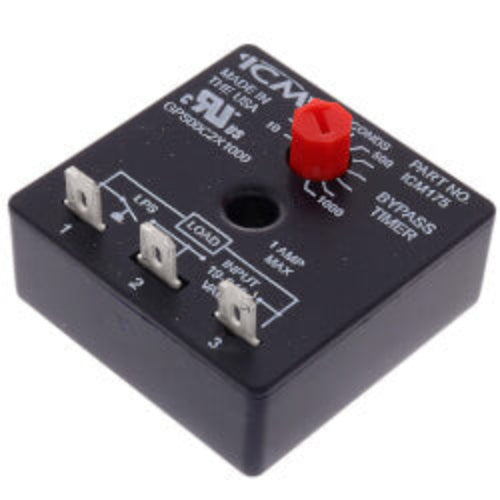

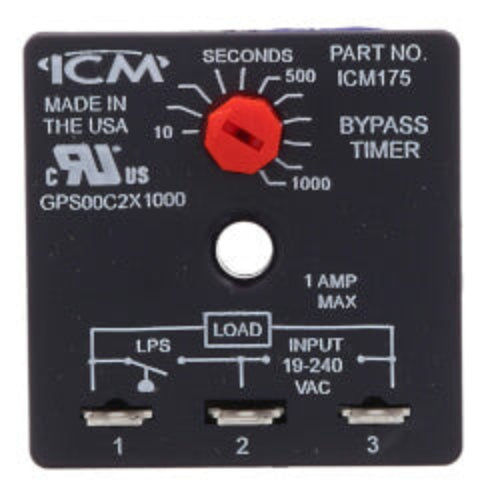

Bypass Timers ("ON delay interval timer," "Normally closed delay on make") are designed to bypass a control or device during start-up. Typically used to bypass a low pressure switch during compressor heat pump start-up or to bypass an oil pressure switch upon start-up. Helps to eliminate nuisance lockouts.
Features
- Designed to bypass a low pressure switch or other device during start-up
- Ideal for low ambient start-ups
- Key component for "winter start" kits
- Helps to reduce nuisance lockouts
- Universal AC voltage operation
- 10-1,000 second knob adjustable time delay
- Epoxy-encapsulated circuitry
Mode of Operation - With power applied to the input, the load energizes immediately and remains energized for the length of the time delay, regardless of the state of the switch being bypassed. At the end of the time delay, the condition of the load is determined by the state of the switch.
