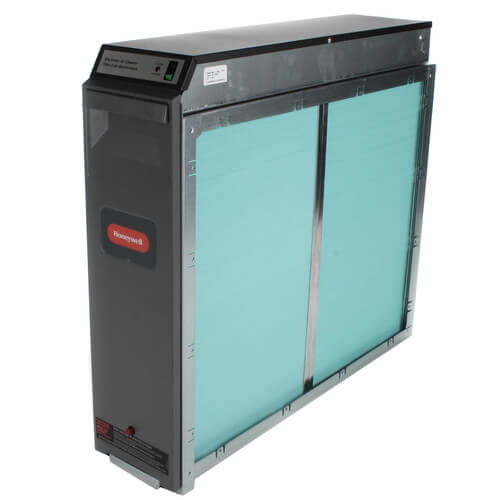

Capturing up to 98% of particles (3.0 - 10.0 micron) that pass through the filter, the Honeywell F300E1035 offers the highest level of filtration on the market.
Features
Media post-filter provides enhanced filtration.
Solid state power supply is self-regulating and maintains peak efficiency during a wide range of cell dirt loading conditions.
New low-profile door with test button to check system operation.
Honeywell F300E1035 helps filter efficiency-robbing "gunk" before it coats critical system parts.
Very low pressure drop.
Exclusive 10-year Clean Coil Guarantee.
Rugged zinc-coated, roll-formed cabinet provides superior strength and corrosion protection.
Product Specifications
Description: High Efficiency Electronic Air Cleaner
Application: Duct mounted
Dimensions (in.) : 20 in. x 25 in.
Dimensions (mm) : 508 mm x 635 mm
Airflow Max.-Capacity (cfm) : 2000 cfm
Airflow Max.-Capacity (m3/hr): 3400 m3/hr
Efficiency Standard : Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2-1999.
Efficiency Standard : Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and large particles, E3=3.0 to 10.0 microns.
Fractional Efficiency : E1=73%, E2=88%, E3=95%
Electrical Ratings : 120 Vac, 0.4A max.
Replacement Filters : 50000293-004
Static Pressure Drop (in. w.c.) : 0.26 at max flow
Additional Features : Includes high air flow post filter to enhance filtration performance.
