Includes two media postfilters to enhance filtration performance
Overview
Capturing up to 98% of particles (3.0 - 10.0 micron) that pass through the filter, the F300 offers the highest level of filtration on the market.
Features
- Solid state power supply is self-regulating and maintains peak efficiency during a wide range of cell dirt loading conditions.
- New low-profile door with test button to check system operation.
- Helps filter efficiency-robbing "gunk" before it coats critical system parts.
- Very low pressure drop.
- Exclusive 10-year Clean Coil Guarantee.
- Rugged zinc-coated, roll-formed cabinet provides superior strength and corrosion protection.
- Media post-filter provides enhanced filtration.
Product Specifications

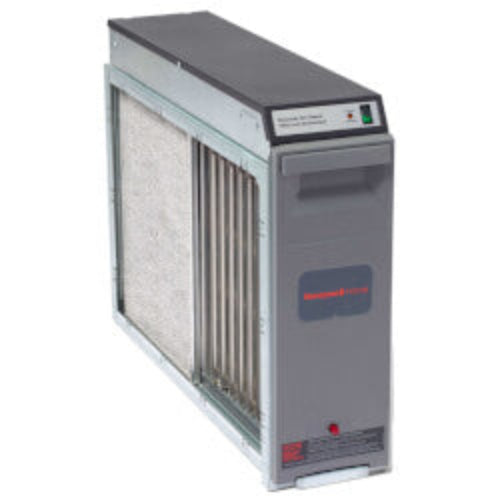

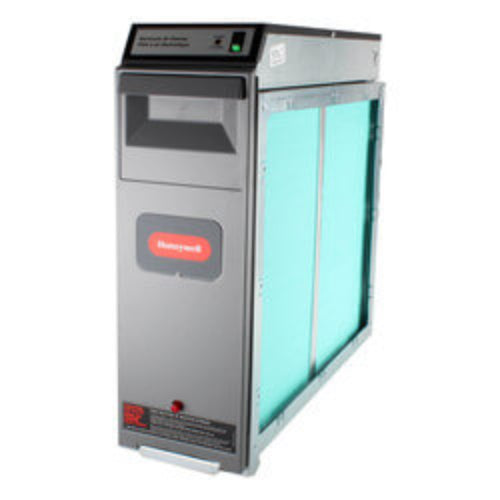

- Description: High Efficiency Electronic Air Cleaner
- Application: Duct mounted
- Dimensions (in.) : 16 in. x 20 in.
- Dimensions (mm) : 406 mm x 508 mm
- Airflow Max.-Capacity (cfm) : 1200 cfm
- Airflow Max.-Capacity (m3/hr): 2040 m3/hr
- Efficiency Standard : Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2-1999.
- Efficiency Standard : Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and large particles, E3=3.0 to 10.0 microns.
- Fractional Efficiency : E1=73%, E2=88%, E3=95%
- Electrical Ratings : 120 Vac, 0.4A max.
- Replacement Filters : 50000293-001
- Static Pressure Drop (in. w.c.) : 0.26 at max flow
- Additional Features : Includes high air flow post filter to enhance filtration performance.
- Type or Air Cleaner : Electronic Air Cleaner
- Frequency : 60 Hz
- Approvals, Underwriters Laboratories Inc Listed: Report E30954
- Tradeline Value : Tradeline
