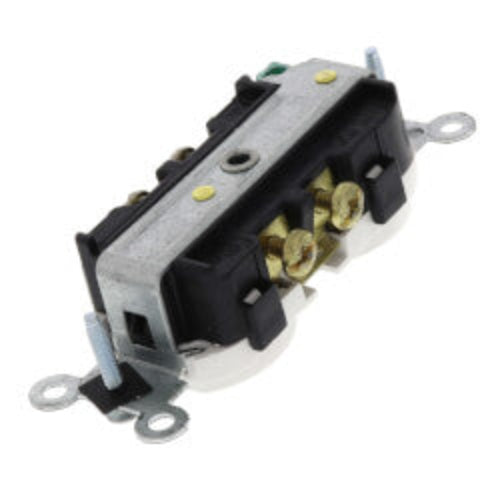

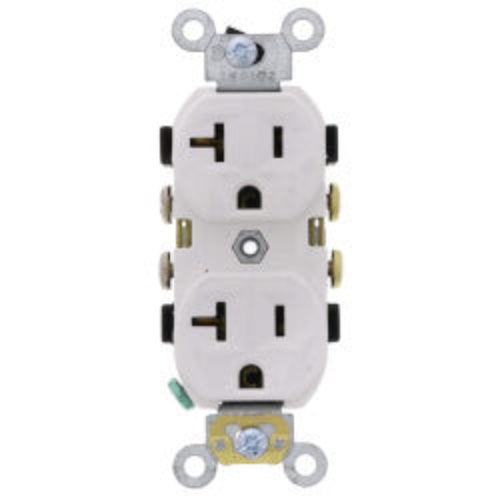

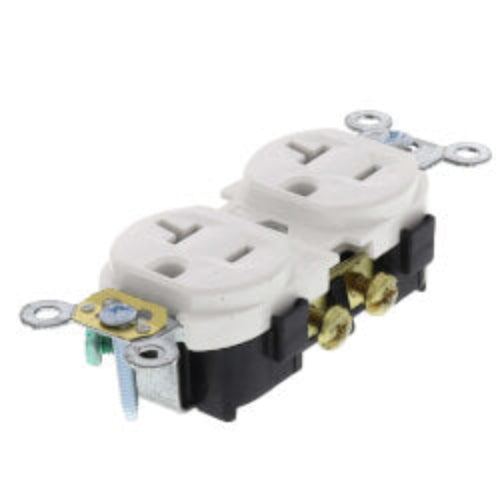

Note: This model is not tamper resistant. Please check your local electrical code to confirm this product has been approved in your area.Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
The Leviton 20A Duplex Receptacle, Commercial Grade with Self Grounding Clip - White (CR20-W) is the perfect replacement for an existing receptacle or can be used to add a new receptacle. With simple side wiring installation can be done quickly and easily. The attached grounding clip saves time by automatically grounding itself when installed on a properly grounded wallbox. This is a high-quality Leviton product that was built to last and carries Leviton's 10 year warranty.
Features:
- Simple and Quick Installation
- Attached Grounding Clip Saves Time
- High Quality Leviton Product
- 10 Warranty Through Leviton
Specifications:
- Ground: Self Grounding
- Color: White
- Amperage: 20 Amp
- Voltage: 125 Volt
- NEMA: 5-20R
- Pole: 2
- Wire: 3
- Termination: Side
- Face Material: Thermoplastic
- Body Material: Thermoplastic
- Strap Material: Zinc-Plated Steel
- Electrical Specifications Dielectric Voltage: Withstands 2000V per UL498
- Current Limiting: Full Rated Current
- Temperature Rise Max 30C after 100 cyc OL at 150 pct rated current
- Environmental Specifications: Flammability Rated V-2 per UL94
- Operating Temp. -40C to 60C
- AC Horsepower Ratings At Rated Voltage 1 HP
- Standards and Certifications: NEMA WD-1 WD-6
- ANSI C-73
- UL498 File E13399
- UL Fed Spec WC-596 File E13399
- CSA C22.2 No. 42 File 152105
- NOM 057
