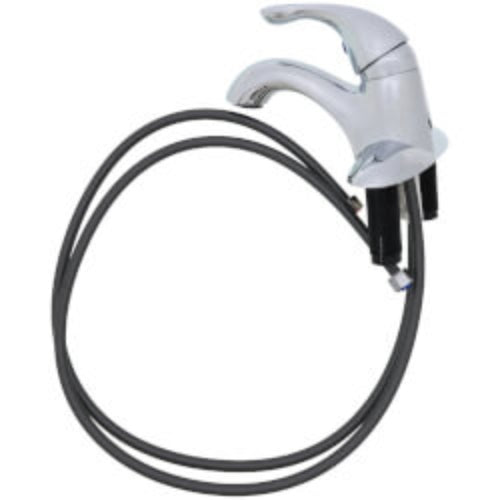

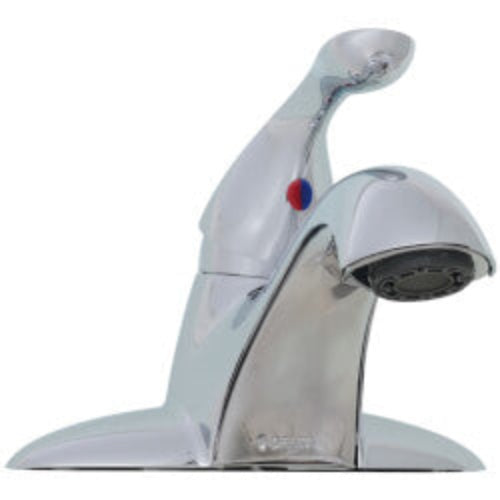

Classic Single Handle Centerset Lav Faucet (Metal Pop-Up), 520-MPU-DST

Name: Classic Single Handle Centerset Lav Faucet (Metal Pop-Up), 520-MPU-DST
Brand: Craftsman Trade Depot
SKU: CTD-000304
Price: 154.06 USD
Availability: InStock

Text block

Description

Classic Single Handle Centerset Lav Faucet (Metal Pop-Up)

Features:

WaterSense certification promotes water conservation
DIAMOND Seal Technology features a valve embedded with diamonds to ensure like-new operation for the life of the faucet
Includes matching finish drain assembly
Meets standards set by Americans with Disabilities Act (ADA)
3-hole 4 in. installation
Rigid spout
Assembled dimensions: 4-15/32 in. H x 6-7/8 in. D x 6-17/32 in. W
Number of Handles: 1
Installation Type: Centerset
Aerator Type: Cache
Valve Type: DIAMOND(TM) Seal Valve
Flow Rate: 1.20 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Drain type: Metal pop-up

Standard Specifications:

Maximum 1.20 gpm @ 60 psi, 4.54 L/min @ 414 kPa
Three hole mount
Diamond coated ceramic cartridge
3/8" O.D. straight, staggered PEX supply lines
Red/blue indicator markings
HGM indicates 0.50 gpm @ 60 psi, 1.9 L/min @ 414 kPa
Includes cartridge limit switch to allow maximum hot water mix of 50%
Models with "MPU" and "TPM" have metal drain with pop-up type fitting with plated flange and stopper
Models with "TP" have metal flange and plastic tail piece
Models with suffix "PPU" have plastic pop-up type fitting with plated flange and stopper
Models with no suffix have brass drain with plastic tailpiece
Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.
5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries
